Frozen Edamame Food Safety: Our HACCP Plan Explained
Sep 10, 2025
Edamame: Quality Inspection and Hazard Analysis (HACCP)
1. Purpose and Scope
This article provides a systematic analysis of the quality inspection protocols and Hazard Analysis and Critical Control Points (HACCP) for the frozen salted edamame production line. It identifies potential food safety hazards at each process step, the basis for determining hazard significance, acceptable levels, control measures, the effectiveness of these controls, and the designation of Critical Control Points (CCPs).
This article is applicable to the entire edamame processing workflow, from raw material acceptance to final product shipment.
2. Terms and Definitions
●CCP (Critical Control Point): A step at which control can be applied and is essential to prevent or eliminate a food safety hazard or reduce it to an acceptable level.
●Acceptable Level: The maximum or minimum value to which a biological, chemical, or physical parameter must be controlled at a CCP. This level is determined by national/customer/importing country standards (e.g., Pesticide MRLs, GB National Standards, client specifications) or internal technical specifications.
●Prerequisite Programs (PRPs): Foundational, facility-wide procedures essential for maintaining a hygienic environment to ensure food safety. These include practices such as cleaning and sanitation, personnel hygiene, and equipment maintenance.
3. Hazard Analysis - Process Step Breakdown
Note: The following table outlines the potential hazards, significance, control measures, and CCP determination for each step in the manufacturing process.
Process Step |
Potential Hazards (Category) |
Significance & Justification / Acceptable Level |
Control Measures |
Effectiveness of Control |
Is it a CCP? |
| Raw Material Acceptance | Bio: Pathogenic bacteria contamination; Chem: Pesticide residues, heavy metals; Chem: Allergens; Phys: Metal, glass, etc. | Bio: Yes; Chem (Residues/Metals): Yes; Allergen: Yes; Phys: Yes. Justification: Contaminants may be introduced during cultivation, harvest, or from the environment. Acceptable Level: Compliance with MRLs of the client/importing country and national standards. Allergens require declared management. |
1) Sourcing exclusively from quarantine-inspected or registered farm bases. 2) Obtaining a compliant pesticide residue test report from samples taken 3-5 days pre-harvest. 3) Verifying supplier qualifications and testing certificates. 4) Segregated transport/loading with clear labeling (allergen control). |
Effective when supplier documentation and test certificates are complete. Reduces chemical and biological risks. | Yes. CCP1 (Raw Material Control) for Chemical (Pesticide/Heavy Metal) hazards. Biological hazards are controlled by subsequent steps. |
| Semi-finished Product Withdrawal & Conditioning | Bio: Pathogen growth; Phys: Foreign matter. | Bio: No (controlled by subsequent blanching); Phys: Low probability. Justification: Risk of microbial growth if thawed/conditioned product is improperly managed. |
Conditioning on stainless steel surfaces, manual removal of defects, environmental sanitation control. | Effective under strict temperature and hygiene control. | No |
| Temporary Cold Storage | Bio: Pathogen contamination; Phys: Metal fragments. | Bio: No (controllable for short term); Phys: Negligible. Justification: At 5–15°C, significant microbial growth is unlikely if well-controlled. |
Temperature maintained at 5–15°C; QC monitors and records temperature every 2 hours. | Effective | No |
| Sorting & Conditioning | Bio: Pathogen contamination; Phys: Metal fragments (e.g., equipment screws). | Bio: No; Phys: Yes. Justification: Physical risk from loose equipment parts during manual/mechanical sorting. |
Manual pre-screening, routine equipment maintenance and inspection, metal detection. | Effective | No |
| Air Selection | Bio: Pathogen contamination; Phys: Metal foreign objects (e.g., parts from air selector). | Bio: No; Phys: Yes. Justification: Potential for physical contamination from detached equipment parts. |
Packaging inspection, air selector maintenance, downstream metal detection. | Controllable | No |
| Washing (Tap Water) | Bio: Pathogen contamination; Chem: Contaminants in tap water (toxic substances). | Bio: Yes. Justification: Water must meet potable standards (GB5749). Contamination of the source or pipe network poses a microbial risk. |
Use of municipal tap water; QC daily tests for residual chlorine and weekly for microbiology; maintain washing tank residual chlorine at 5–8 ppm. | Effective when water quality is compliant. | No |
| Ice Water (for Cooling) | Bio/Chem: | No (Uses municipal water; microbial growth is inhibited by low temperature). Justification: Water quality conforms to GB5749 standard. |
Use of 0–4°C ice water produced by the ammonia refrigeration system; regular maintenance. | Effective | No |
| Edible Salt (Acceptance/Storage/Prep) | Bio: Pathogen contamination (low risk); Chem: Heavy metals; Phys: Metal, glass. | Heavy Metals: Yes. Justification: Salt is an auxiliary material. Non-compliant supplier processes/raw materials can introduce chemical and physical hazards. |
Supplier qualification and third-party test reports; rejection of damaged/contaminated bags; storage off-floor and away from walls (FIFO); brine preparation according to standard. | Effective based on approved supplier program. | No (Controlled by PRPs) |
| Blanching | Bio: Pathogen survival (if time/temp is inadequate). | Bio: Yes. Justification: Heat treatment is a critical step for microbial control. Failure to meet standards presents a significant hazard. |
CCP2: Control blanching temperature at 98±2°C; time at 135±5 seconds (for edamame/chadaomame/fava beans); blanching water contains 1% salt. QC checks and records every 30 mins. | Effective in inactivating most pathogens when parameters are met. | Yes (CCP2) |
| Brine Cooking (Thaw → Cook) | Bio: Pathogen survival (if temp control is inadequate). | Bio: Yes. Justification: Cooking after thawing is a key kill step. Insufficient time/temp is a risk. |
CCP2a: Product cooked in 10–15% brine; temp 80±5°C; time approx. 180±5 seconds for edamame (adjusted by variety/client specs) to achieve target salinity. | Effective in controlling microorganisms when parameters are met. | Yes (CCP2a) |
| Cooling | Bio: Pathogen contamination (if cooling is slow); Chem: Residual chlorine. | Bio/Chem: No / Chlorine may be significant. Justification: Improper cooling post-blanching can lead to cross-contamination or excessive chlorine. |
Cooled with tap water spray then enters cooling tank; water temp ≤30°C, residual chlorine 2–5 ppm. QC records temp and chlorine every 30 mins. | Effective within procedural limits. | No |
| Pre-cooling | Bio: Pathogen contamination; Chem: Residual chlorine. | Chlorine: Yes (harmful if excessive). Justification: A further cooling step where chlorine levels must be controlled. |
Enters #2 cooling tank, water temp <15°C, residual chlorine 2–5 ppm; monitored regularly. | Effective | No |
| Brine Soaking | Bio: Pathogen contamination (inhibited by low temp & high salt). | No. Justification: Low-temperature, high-salt environment is unfavorable for microbial growth. |
Prepared with 8–9° Baumé ice-brine, soaking for 40–50 mins (or per client request). | Effective | No |
| Draining | Bio: Pathogen contamination. | No. Justification: Short mechanical dewatering step; low risk if equipment and environment are sanitary. |
Draining via vibrators/climbing conveyors; equipment cleaning and maintenance. | Effective | No |
| IQF Freezing | Bio: Inhibition of pathogen growth; Phys: Metal fragments. | Bio: No (growth inhibited below -18°C); Phys: Yes (equipment fragments). Justification: Freezing inhibits microbes, but physical hazards from loose parts remain a risk. |
Air temp ≤-18°C; evaporation temp ≤-24°C; freezing time 8–12 mins; regular equipment checks and manual sorting. | Effective when temperature targets are met. | No |

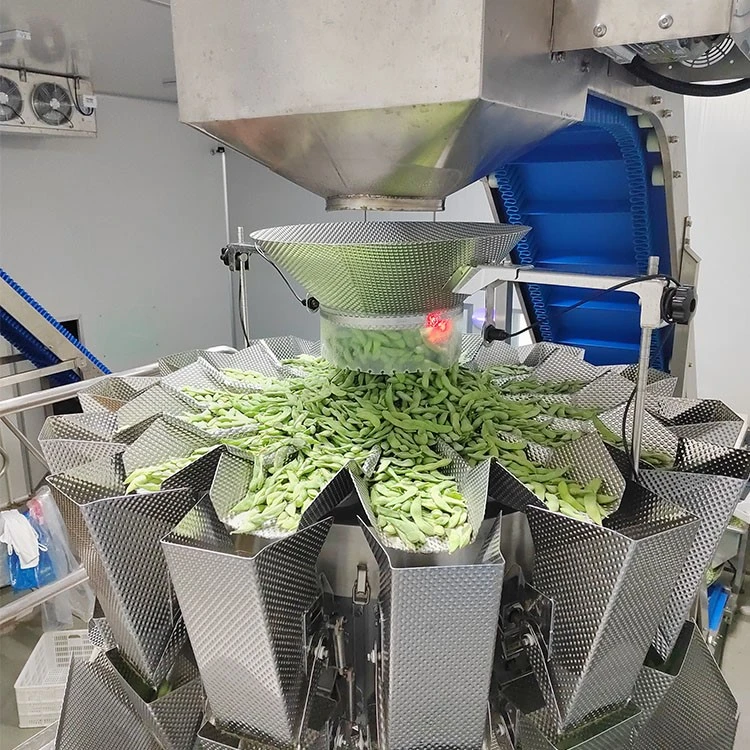

| Weighing & Bulk Packing (Semi-finished) | Bio/Chem/Phys: | No (Primarily a quality and physical check). Justification: Pre-packaging checks can identify defects or contamination. |
Removal of ice clumps/defects at IQF exit; QC samples 500g every 30 mins; microbial sampling every 2–3 hours; pesticide residue sampling per batch. | Effective | No |
| Packaging Material (Receipt/Storage/Prep) | Bio: Secondary contamination; Chem: Non-compliant material specs; Phys: Metal fragments. | Bio/Chem: No / Possible (if material is non-compliant). Justification: Substandard packaging can introduce foreign matter or chemical residues (ref. GB9683). |
Supplier qualification and testing; inner bags sterilized with UV/ozone for ≥30 mins before use; proper storage protocol. | Effective | No |
| Finished Product Packaging | Bio: Pathogen contamination; Phys: Foreign matter. | No. Justification: Control relies on room temperature and personnel hygiene. |
Packing room temp ≤15°C; stainless steel surfaces; two-person verification of weight/seal; post-seal metal detection. | Effective | No |
| Sealing / Weight Check | Bio: Secondary contamination (from poor seal). | Yes (a poor seal exposes the product to contamination). Justification: Seal integrity directly impacts shelf life and contamination risk. |
Two-person verification, ensuring net weight is ≥101% of client requirement; sealer maintenance and inspection. | Effective | No (Controlled by PRPs) |
| Metal Detection | Phys: Metal fragments. | Yes. Justification: Metal fragments may be introduced from raw materials or during processing, posing a safety risk to consumers. |
CCP (Metal Detection): Every bag must pass through the detector. Calibrated at startup, every 30 mins, and at shutdown with standard test pieces (Fe∮2.0mm, Sus∮3.5mm). | Effective (100% inspection). | Yes (CCP) |
| Cartoning / Finished Product Storage | Bio/Chem/Phys: | No. Justification: Critical controls are complete; focus shifts to cold chain management. |
Products passing metal detection are sent to -18°C storage within 5 mins; stored by batch with clear labels; freezer temp recorded every 2 hours. | Effective | No |
| Shipment | Bio/Chem/Phys: | No. Justification: Requires clearance from customs/quarantine; container cleanliness and temperature are key. |
Pre-shipment inspection report; container cleanliness/seal check; loading completed within 90 mins with container temp at ≤-15°C; photos archived. |
4. Critical Control Point (CCP) Summary and Control Plan
CCP1 - Pesticide Residues / Heavy Metals (Raw Material Acceptance)
●Hazard: Exceeding limits for pesticide residues and heavy metals.
●Critical Limits: Compliance with MRLs set by the client, importing country, and national food safety standards.
●Monitoring: Review of third-party test reports from samples taken 3-5 days pre-harvest. Re-testing upon receipt as necessary.
●Corrective Actions: Reject or return the non-compliant batch. Isolate the product and notify the supplier. Initiate traceability and place the affected batch on hold.
●Records: Supplier certificates, lab test reports, incoming inspection records.
CCP2 - Blanching
●Hazard: Inadequate inactivation of pathogenic microorganisms.
●Critical Limits: Temperature: 98±2°C; Time: 135±5 seconds (for edamame/related beans); Blanching water salinity: 1%.
●Monitoring: Continuous temperature monitoring. QC staff verifies and records temperature and time every 30 minutes. Equipment is calibrated per schedule.
●Corrective Actions: If limits are not met, halt production for the affected batch. Assess for rework or disposal. Repair and re-validate equipment before resuming.
●Records: Temperature/time logs, equipment calibration records, corrective action reports.
CCP2a - Brine Cooking
●Hazard: Microbial risk due to insufficient heat treatment.
●Critical Limits: Brine concentration: 10–15%; Temperature: 80±5°C; Time (edamame example): 180±5 seconds (or as required to meet target product salinity/client specs).
●Monitoring: Continuous temperature/time recording. QC staff inspects and records every 30 minutes.
●Corrective Actions: Same as CCP2.
●Records: Temperature/time logs, salinity records, corrective action reports.
CCP (Metal Detection)
●Hazard: Presence of metal fragments.
●Critical Limits: Must detect standard test pieces (Fe∮2.0mm, Sus∮3.5mm). Every bag must be screened.
●Monitoring: 100% of bags are screened. The detector is challenged with test pieces at startup, every 30 minutes during operation, and before shutdown. All checks are recorded.
●Corrective Actions: If the alarm is triggered, stop the line. Isolate the affected product range for sorting or recall. Investigate and repair the source of contamination. Document the incident and resolution.
●Records: Calibration log, alarm and corrective action records, batch traceability documents.
5. Monitoring, Verification, and Record-Keeping
Monitoring Frequency Examples:
●Washing Tank Chlorine: Every 30 mins (Target: 5–8 ppm).
●Cooling/Pre-cooling Chlorine: Every 30 mins (Target: 2–5 ppm).
●Blanching/Cooking Temp & Time: Every 30 mins.
●Metal Detector Calibration: Startup / Every 30 mins / Shutdown.
●Cold Storage Temperature: Every 2 hours.
●Semi-finished Product Sampling (500g): Every 30 mins.
●Microbiological Sampling: Every 2–3 hours or based on risk assessment.
●Packaging Sterilization: ≥30 mins (UV/Ozone) for inner bags, with records.
Verification Activities:
Regular (monthly/quarterly) CCP verification reviews.
External lab proficiency testing and method validation.
Annual calibration of critical equipment (thermometers, metal detectors).
Quarterly supplier performance evaluations and random sample re-testing.
●Record Retention: Records are maintained according to regulatory and client requirements (typically a minimum of 1 year, extended as necessary) and must ensure full traceability.
6. Corrective Actions and Management
When a deviation from a critical limit occurs, the operator must immediately halt the process, isolate the affected product, and notify the Quality Manager. The non-conforming product procedure (rework, disposal, return, recall) is initiated. The root cause is investigated, equipment or processes are repaired and re-validated, and all actions are documented.
7. Recommendations for Continuous Improvement
●Strengthen supplier-side controls through periodic audits and expanded third-party testing.
●Implement an electronic record-keeping system for automated monitoring and alarming of temperature, chlorine, and metal detection.
●Conduct regular HACCP training to improve employee awareness in identifying and reporting potential physical hazards (e.g., loose equipment).
●Collaborate with clients to clearly define critical quality standards (e.g., pesticide MRLs, salinity) in contracts to minimize disputes.
Frozen Edamame Kernels: Product Specification
Frozen Edamame Processing: Quality & Safety Standards
Appendices
●Monitoring Record Templates (Temperature, Chlorine, Metal Detection, Cold Storage) - Refer to internal digital forms.
●Reference Standards: GB5749 (Potable Water), relevant GB food safety standards, MRL standards of importing countries.
